Needle Roller Bearings: With vs. Without an Inner Ring

Have you ever wondered what makes machines run smoothly? Tiny components called bearings play a huge role, and needle roller bearings are among the most efficient types. They are designed to carry heavy loads in very tight spaces. But not all needle roller bearings are the same. One of the most important choices engineers face is whether to use a bearing with an inner ring or without one.

This decision affects everything from the machine's performance to its cost and lifespan. Whether the bearing relies on the machine's own shaft or has its own built-in ring makes a significant difference.

Let's break down the design differences, compare their strength and durability, and learn when one is a must-have over the other with real-world examples.

Design: The Core Structural Difference

The fundamental difference lies in the bearing's basic architecture.

lNeedle Roller Bearing WITH an Inner Ring (like the NA/NAV Series): This is a complete, self-contained unit. Think of it as a ready-to-install module. It comes with its own inner ring, needle rollers, and an outer ring. This inner ring has a precision-hardened and ground raceway (the smooth track the rollers run on) that is perfectly matched to the rollers. When you install it, you mount this complete assembly onto a shaft.

lNeedle Roller Bearing WITHOUT an Inner Ring: This design is not a complete unit. It consists only of the needle roller cage (or full complement of rollers) and the outer ring. It directly uses the machine's shaft as the inner raceway. For this to work, the shaft itself must be hardened, ground, and finished to a very high precision (like tolerance grade F6, as mentioned in the product guide) to function as a durable running surface.

Key Takeaway: A bearing with an inner ring is a plug-and-play component, while one without an inner ring turns your shaft into a critical, permanent part of the bearing system.

Strength & Lifespan: How They Compare

This core design choice directly impacts the bearing's performance and durability.

lLoad Capacity and Rigidity: Bearings with an inner ring, such as the NA/NAV Series, offer excellent bearing rigidity and high radial load carrying capacity. The integrated inner ring is manufactured from bearing-grade steel and heat-treated to withstand repeated stress. In the product table, for a shaft size of 30mm, the NA4906 bearing has a dynamic load rating (Cr) of 25,000 N, showcasing its strength. Conversely, the load capacity of a bearing without an inner ring is entirely dependent on the hardness and quality of the shaft material. If the shaft is not perfectly treated, it will deform under load, drastically reducing performance.

lService Life and Reliability: The dedicated inner ring in bearings like the NA/NAV Series is engineered for maximum durability and consistent performance. It ensures optimal contact between the rollers and the raceway, minimizing wear. Furthermore, these bearings can be designed with oil holes and grooves on the outer ring, which are "beneficial for bearing lubrication" and help "prolong their service life." Without an inner ring, the shaft surface wears down over time. Once the shaft is worn, the entire component (often a large, expensive part of the machine) must be replaced or extensively re-machined, leading to higher long-term costs and downtime.

Key Takeaway: For predictable, long-term performance and maximum load capacity in a compact space, a needle roller bearing with an inner ring provides a more reliable and often more economical solution over the full life of the machine.

When You Must Choose a Bearing WITH an Inner Ring

Choosing a bearing without an inner ring might seem like a simple cost-saver, but it's only suitable for specific, low-stakes applications. You must select a needle roller bearing with an inner ring in these critical situations:

1. When Your Shaft is Not Hard Enough: The shaft material must be as hard as a bearing raceway. If it's made of mild steel, aluminum, or any non-hardened material, it will quickly develop grooves and fail. An inner ring provides the necessary hardened surface.

2. For High-Speed or Heavy-Load Applications: Applications like gearbox outputs, pump shafts, or compressor crankshafts demand stability. A dedicated inner ring maintains precise geometry under high stress and speed, preventing catastrophic failure.

3. When You Need Easy Maintenance and Replacement: In a bearing with an inner ring, the entire bearing unit can be replaced as one piece during service. Replacing a worn bearing without an inner ring requires disassembling the machine and re-machining or replacing the entire shaft—a far more complex and expensive repair.

4. To Protect Expensive or Complex Shafts: If the shaft is a large, intricate, or costly part of the assembly (like a crankshaft or a transmission shaft), adding a replaceable needle roller bearing with inner ring acts as a protective, sacrificial component. You replace the affordable bearing, not the priceless shaft.

Real-World Case Studies

Let's see how this choice plays out in real machinery.

Case Study 1: The High-Performance Transmission

A manufacturer was designing a compact motorcycle transmission. Space was extremely limited, but the gears placed heavy radial loads on the shafts. They chose the NAV4008 bearing (for a 40mm shaft) because its integrated inner ring provided the high radial load capacity and rigidity needed in a small package. The hardened inner ring ensured smooth operation at high RPMs, and when it came time for an overhaul, mechanics could simply swap the bearing without touching the transmission shafts.

Case Study 2: The Costly Mistake in a Conveyor System

A factory wanted to save money on a new conveyor roller system. They used needle roller bearings without inner rings, relying on the mild steel roller tubes as the raceway. Initially, it worked. However, within months, the constant load wore grooves into the soft steel tubes. The rollers seized, causing a production line shutdown. The "cheaper" solution required replacing dozens of entire roller tubes and bearings, costing far more in parts and lost production time than using machined needle roller bearings with inner rings from the start.

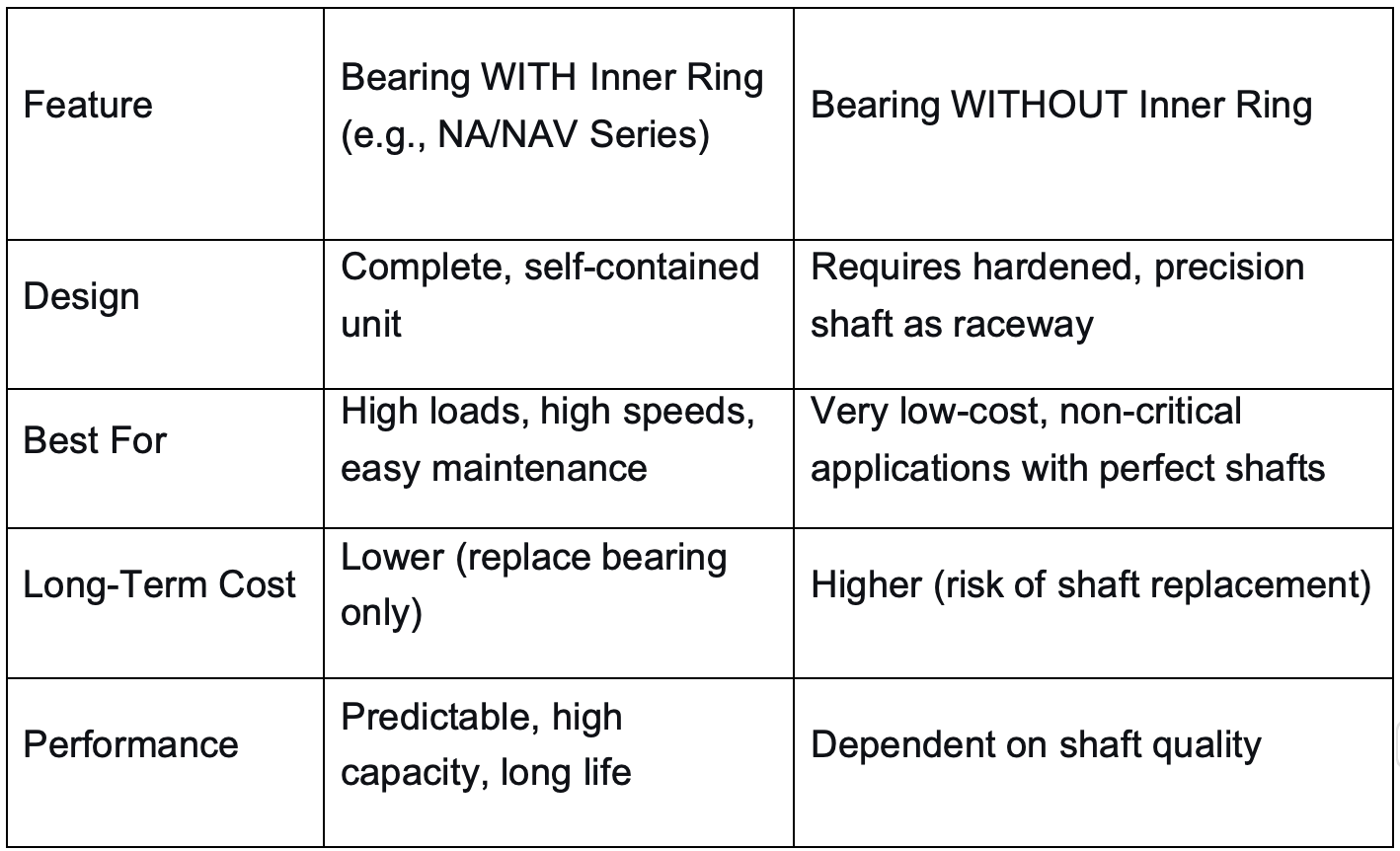

Making the Right Choice

Selecting the right bearing is not just a technical detail; it's a critical business decision that affects your machine's reliability, maintenance costs, and uptime.

For robust, reliable, and high-performance applications, the choice is clear. A quality needle roller bearing with an inner ring, like the NA/NAV Series from Suzhou Dongwu, provides the engineered solution for demanding industrial environments.
